JT-500AQC & R Dual Angle Chamfering Machine ( Side Mill Type)
Enlarge
| MODEL | JT-500AQ |
|---|---|
| Accessory | side mills Ø63mm x Ø17mm x 15mm |
| Machine Size | L500mm x w400mm x H320mm |
| Voltage | 3Ø , 220v-440v or 1Ø , 110v/220v ; 50Hz/60Hz |
| Speed | 3500 r.p.m .(Standard); 0~12000 r.p.m .(Optional) |
| Height of bevel | 0-3mm & 2R , 3R , 5R |
| Bevel angle | 45° |
| N.W./G.W. | 28kgs / 31kgs |
| Packing | 55cm x 46cm x 32cm |
| Measurement | 3 Square feet |
| Motor | 1 HP |
| Cutter Size | SPUN 1203 x 6pcs |
| Track Size | 500mm x 100mm x 12mm , 500mm x 40mm x12mm |
- Adopt with the side mill cutting. Quick exchange for the carbide knife insert.
- Both C & R angle cutter are for disposable knife insert.
It's decreasing the costs of knife and increasing the working ability. - Easy chamfering any length of steel, iron, casting iron and non-metal materials.
- Adjustable cutting point of C angle to make the full using of side knife.
- Optional Inverter (0 ~ 12000r.p.m.).
In order to make the surface of workpeice smoothly after chamfered. - Optional accessories : R side mill cutter. The knife specification from R2.R3.R5.

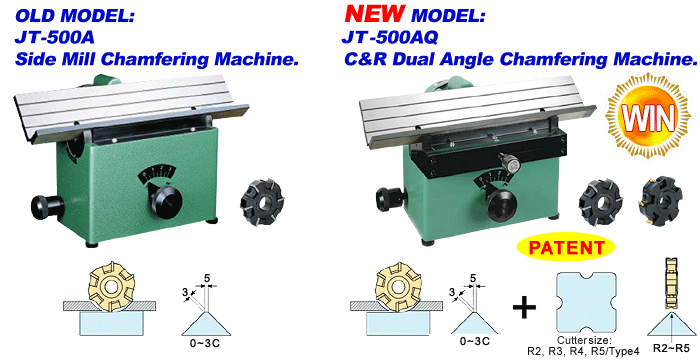

| ITEM / MODEL | 500A (Original) | 500AQ (New model) |
|---|---|---|
| Cutting Tools | Side cutter only for chamfering C angle. | Optional R angle side cutter for C+ R dual angle  |
| Chamfering Capacity | 0~3C | 0~3C, (Optional) 2R~5R |
| Angle adjusting for chamfering C |
15 ~ 45 degree angle swivel. |
Fixed, 45 degree angle only |
| Swivel track table, adjustable cutting point of side cutter. |
No functions | Table can do slight adjusting front and back to make the side mill cutter full be used. |
| Chamfered angle. | Both side of C angle with shaply angle. | The R angle with circle -radian and safety. |
| Costs for purchase | Simple model / Lower costs |
Advance model / Higher costs |
| Consuming cost of tools ( For long-term) |
High Costs | Saving half costs |

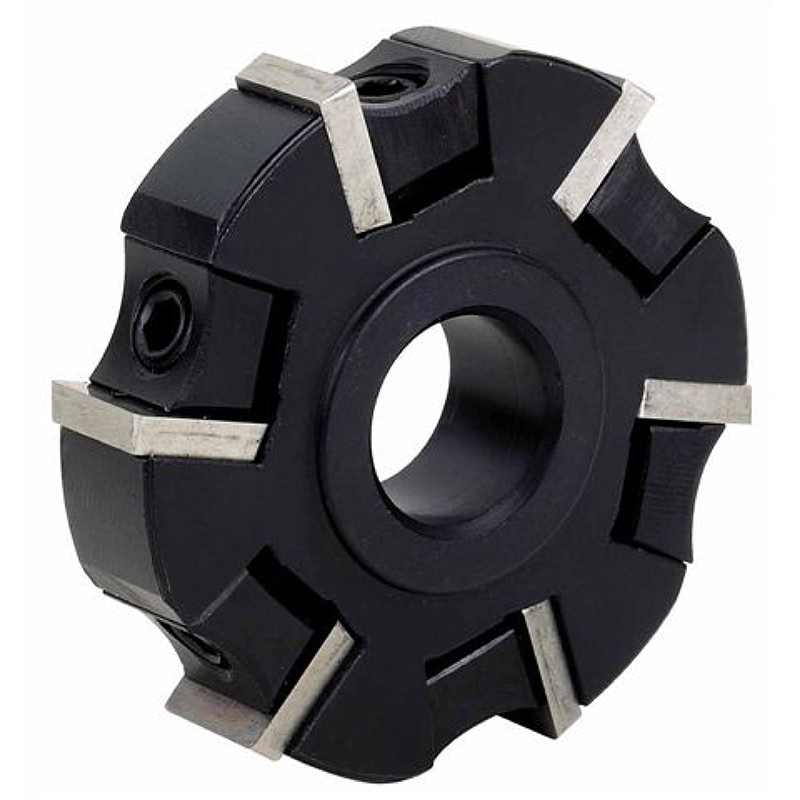

C TYPE CUTTER
& 6PCSC TYPE BLADE

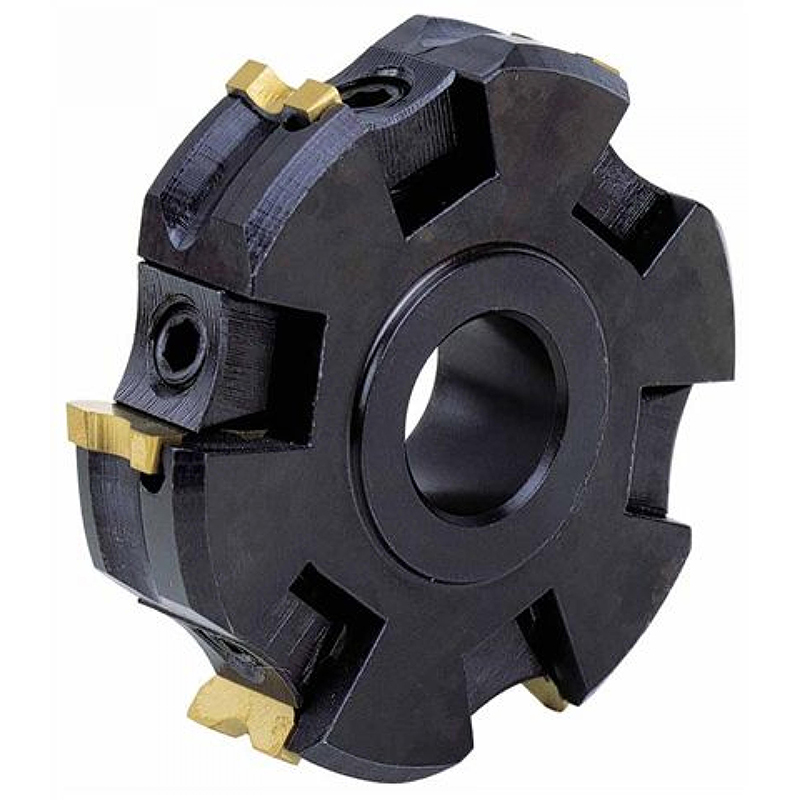

R TYPE SIDE MILL CUTTER
