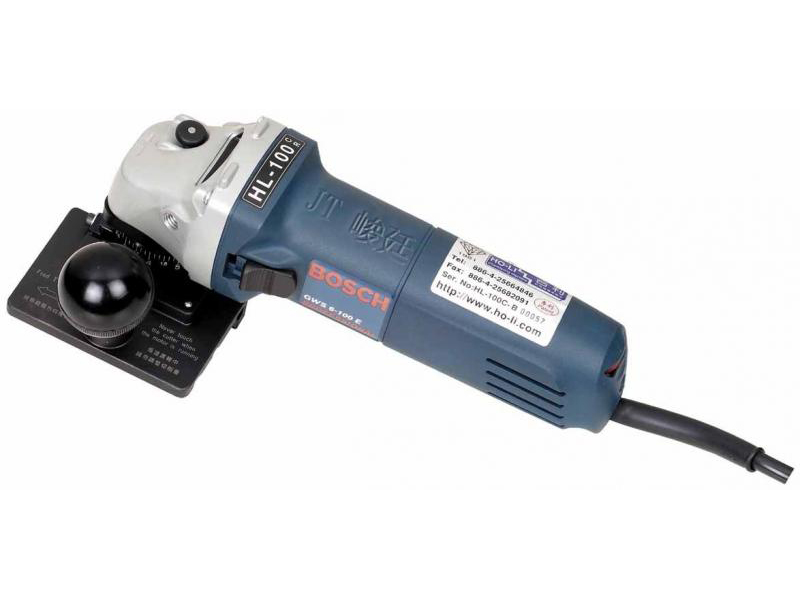

JT-100CPortable Regular Chamfering Machine ( L + V Mode )
Enlarge
| MODEL | JT-100C |
|---|---|
| Capacity, (Old - L mode) | 0~3 m/m |
| Capacity, (New - V mode) | 0~5 m/m ( 2 times processing) |
| Table size | 100 X 70 x 8 mm |
| Motor | 100V ~ 240V 50/60Hz 1PH |
| Speed | 11000 r.p.m. |
| Variable speed(Optioan) | 2800 ~ 11000 r.p.m. |
| Non Load Motor | 670W 6.0A |
| Cutter Size | SPMW 0903 ADTR |
| Weight | N.W.: 2.4KGS ; G.W.: 2.8 KGS |
| NW/GW | 2.4 / 2.8 kgs |
| Packing | 38cm X 13cm X 14cm |
| BLADE | SPMW0903ADTR |
- Adopt with flat face mill cutting. In order
to save the cutter costs.

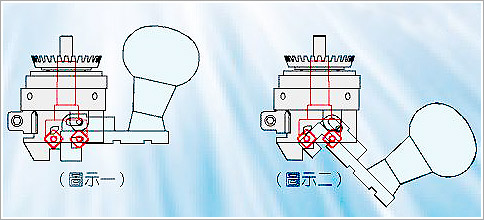

You can swivel base angle to make the cutter flute to be recycle used. - Available for 2 functions adjusting. The original for L type chamfering ( Fig 1) ; the new for V type chamfering ( Fig 2).
- For V type chamfering : save energy. Also the surface of workpeice will be more smoothly after chamfered.
- PATENT model.
CUTTER+2PCS BLADE
BOSCH
