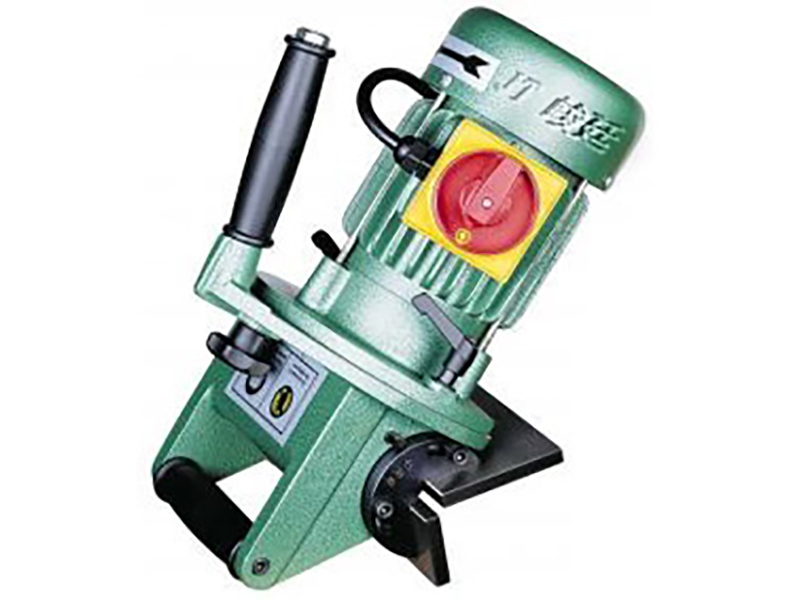

JT-200APowerful Portable Chamfering Machine(1 HP)
Enlarge
| MODEL | JT-200A |
|---|---|

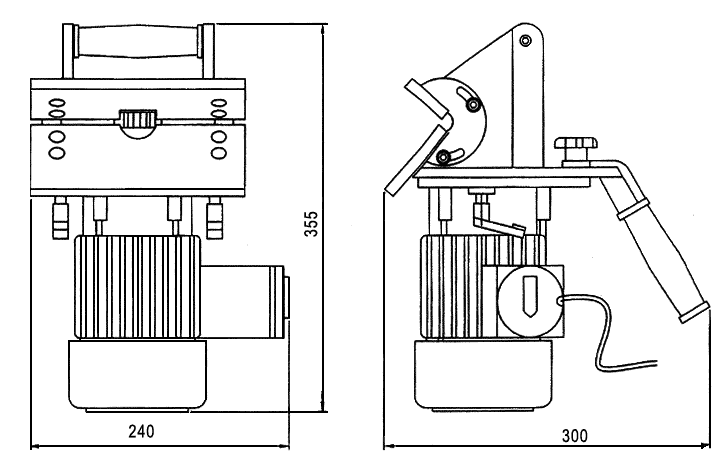

| Space requirement | 360mm x 200mm x 260mm |
| N.W./G.W. | 11kgs/13kgs |
| Voltage | 220v/440v , 3 Phase; 50Hz/60Hz |
| Speed | 3500r.p.m |
| Length of guide rails | 200mm |
| Height of bevel | 0~7mm(To process 2) |
| Motor | 1HP |
| Packing | 40.5cm x 30cm x 30cm |
| Blade Size | SPUN1203 x 9 pcs |
| Track Size | 200mm x 78mm x 9mm, 200mm x 45mm x 9mm |
- Adopt with side mill cutting. Quick exchange for knife insert.
- Any metal materials are available for chamfering.
- Swivel track for adjusting, the range from angle 15° ~ 45° degree.
Chamfered with side 15° ~45° degree for matching different requirement. - The chamfering adility 0-7C , 0-10mm / 45°.

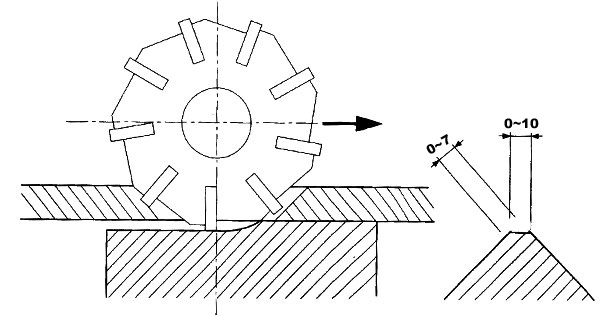

SIDE MILL CUTTER & 9PCS BLADE
