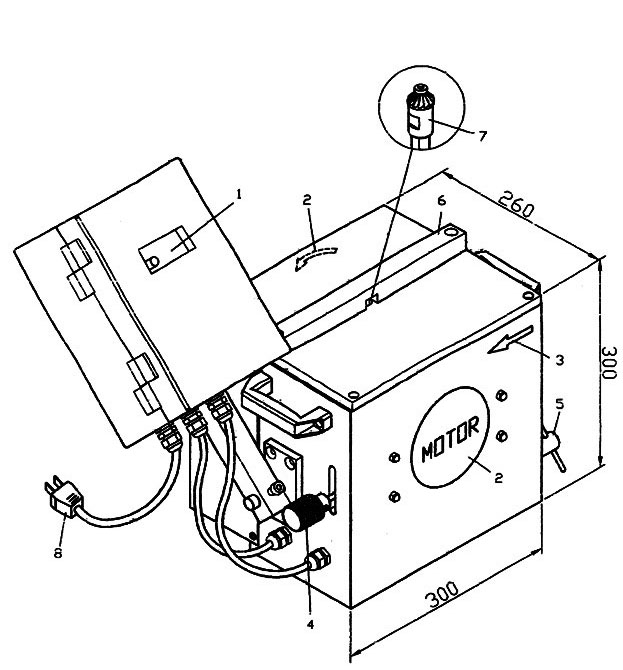

JT-300AInverter Chamfering Machine (Regular + Irregular )
Enlarge
| MODEL | JT-300A |
|---|---|
| Accessory | Disposable carbide end mill |
| Machine Size | L330 x W330 x H 300 mm |
| Voltage | 1Ø, 220V ; 50HZ/60HZ |
| Speed | 0~12000 r.p.m. |
| Height of bevel | 0~3 mm |
| Bevel angle | 45 degree |
| N.W./G.W. | 40 Kgs /42 Kgs |
| Packing | 55cm x 44cm x 38cm |
| Measurement | 3.4 Square feet |
| Motor | 1 HP |
| Track Size | 300mm x 250mm x 12mm |
- Adopt with disposable carbide end mill+2pcs blade.
- Equipped with inverter motor, range of speed 0~12000 r.p.m.

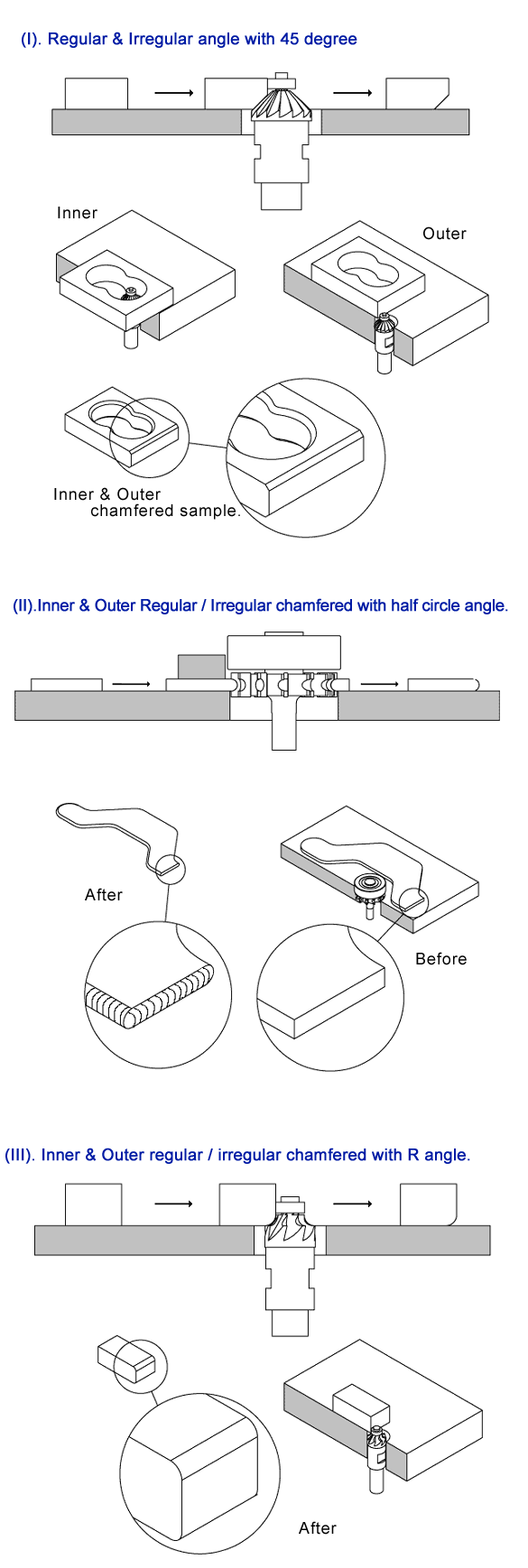

Depending on different materials do different chamfering process. (Except heat treatment) - Special for chamfering regular and irregular curving surface, such as inner gap, complex curve surface of inner or outer.
- Available for chamfering workpeice with inner diameter and inner gap width with 8mm or radian with 4R or above.
- Chamfer ability range: within 0~2C or 3R.
- Workpeice with angle 45 degree after chamfered.
- Optional disposable carbide end mills, save the costs for tool replacement.
- CE version is available.
DISPOSABLE CARBIDE END MILL
+2PCS BLADE
