JT-500AGOmnipotent Face Mill Chamfering Machine
Enlarge
| MODEL | JT-500AG |
|---|---|
| Accessory | Face milling cutter Ø50mm x Ø17mm x 35mm |
| Machine Size | L500mm x W430mm x H300mm |
| Voltage | 3Ø , 220v-440v, or 1Ø ,110v~220v;50Hz/60Hz |
| Speed | 3500 r.p.m |
| Height of bevel | 0-4mm |
| Bevel angle | 45° |
| N.W./G.W. | 48.5kgs / 58kgs |
| Packing | 50cm x 60cm x 40cm |
| Measurement | 4.4 Square feet |
| Motor | 1 HP |
| Cutter Size | SEKN 1203 x 5pcs |
| Track Size | 500mm x 150mm x 20mm , 500mm x 120mm x 12mm |
- Adopt with the face mill cutting.
- Available for all kind of materials.
- Workpeice with angle 45 degree after chamfered.

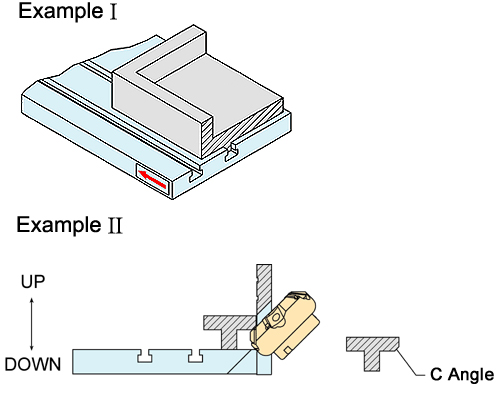

- The T-slot table can option with T jig (Type 1) to avoid the surface crashed. Also, to move up and down for chamfering the T workpeice by track (Type 2).
- CE version is available.
- PATENT model.
