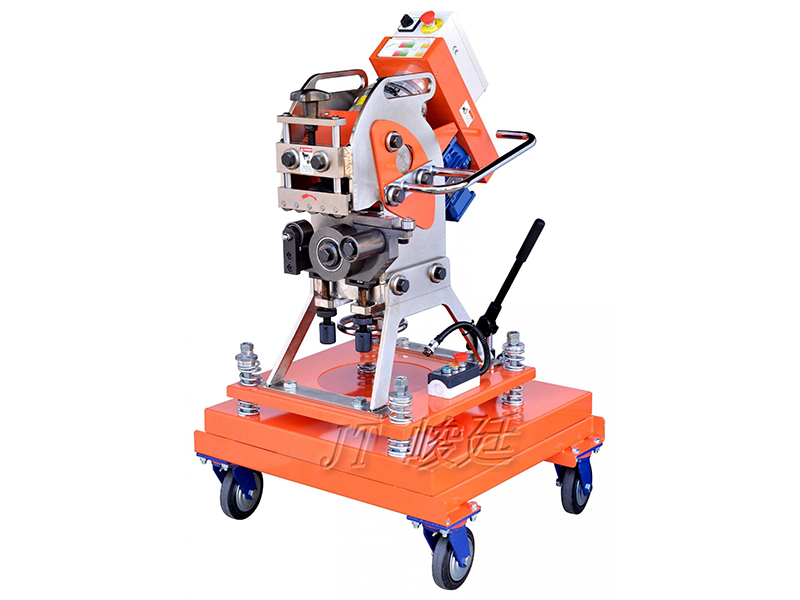

JT-20WSelf-propelled chamfering machine
Enlarge
| MODEL | JT-20W |
|---|---|
| Voltage | 200V-440V,50HZ/60HZ |
| Motor | 1.85KW, 1400rpm/50Hz, 1720rpm/60Hz |
| Cutting speed | 1850~2250mm/ min |
| Height of angle | 18mm/45° (carbon steel) 14mm/45°(stainless steel) 8mm for one times processing |
| Min diameter for Outside bevels | Ø400 |
| Bevel angle | 15°~50° |
| Work piece thickness | 9~50mm |
| N.W | 283kgs |
- Adopt the imported motors and decelerator of Italy.
- Applicant: Available for steel，stainless steel，aluminum，copper，plastic and others materials.
- No need the coolant oil or cutting oil while chamfering.
- Available for different size of panel.
The large size: Chamfering it is self for work piece
The small size: Fixed way, move the work piece for chamfering. - Easy operation, to adjustment each function with only one fixed wrench.
- Adopt mobile lift table, the height can random adjusting from 840-1240mm.
- Easy operation, to turn round no need accessories.
STEEL CUTTER
SUS CUTTER
