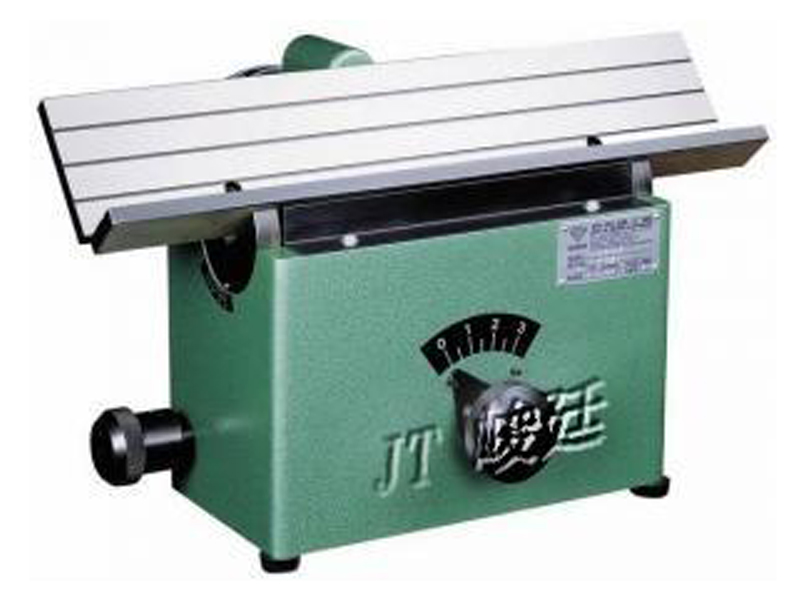

JT-500ASide Mill Chamfering Machine
Enlarge
| MODEL | JT-500A |
|---|---|
| Accessory | side mills Ø63mm x Ø17mm x 15mm |

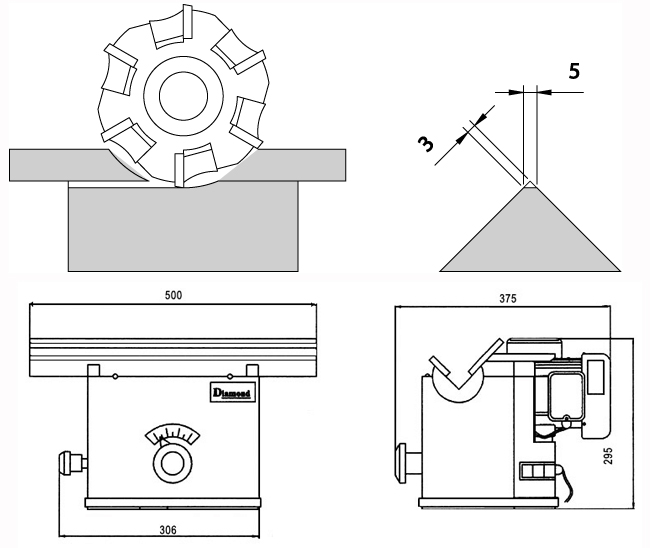

| Machine Size | L500mm x w350mm x H320mm |
| Voltage | 3Ø , 220v-440v, or 1Ø ,110v/220v;50Hz/60Hz |
| Speed | 3500 r.p.m |
| Height of bevel | 0-3mm |
| Bevel angle | 15°~45° |
| N.W./G.W. | 26kgs / 29kgs |
| Packing | 55cm x 42cm x 32cm |
| Measurement | 2.74 Square feet |
| Motor | 1 HP |
| Cutter Size | SPUN 1203 x 6pcs |
| Track Size | 500mm x 100mm x 12mm , 500mm x 40mm x12mm |
- Adopt with side mill cutting. Quick exchange for knife insert .
- Available for chamfering steel, iron, casting iron and non-metal materials.
- Swivel table for chamfering workpeice with different angle during 15 ~ 45 degree.
- CE version is available.
| ITEM / MODEL | 500A (Original) | 500AQ (New model) |
|---|---|---|
| Cutting Tools | Side cutter only for chamfering C angle. | Optional R angle side cutter for C+ R dual angle  |
| Chamfering Capacity | 0~3C | 0~3C, (Optional) 2R~5R |
| Angle adjusting for chamfering C |
15 ~ 45 degree angle swivel. |
Fixed, 45 degree angle only |
| Swivel track table, adjustable cutting point of side cutter. |
No functions | Table can do slight adjusting front and back to make the side mill cutter full be used. |
| Chamfered angle. | Both side of C angle with shaply angle. | The R angle with circle -radian and safety. |
| Costs for purchase | Simple model / Lower costs |
Advance model / Higher costs |
| Consuming cost of tools ( For long-term) |
High Costs | Saving half costs |
SIDE MILL CUTTER & 6PCS BLADE
