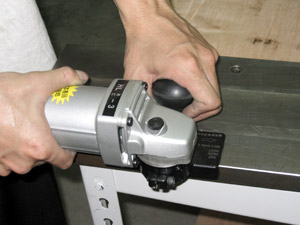

JT-C3Portable Regular Chamfering Machine ( L Mode Only )
Enlarge
| MODEL | JT-C3 |
|---|---|
| Space requirement | 300mm x 160mm |
| Weight | 2.7kgs |
| Voltage | 110v/220v , 1 Phase; 50Hz/60Hz |
| Speed | 12000 r.p.m |
| Length of guide rails | Ø100mm |
| Height of bevel | 0~3mm |
| Package measurement | 370mm x 135mm x 130mm |
| A.M.P | 5.9A |
| Blade Size | SPMA321,9.525 Square Blade R2 |
- Light and portable type.
- Special for regulare material processing.
REGULAR GUIDE SEAT
IRREGULAR GUIDE SEAT
