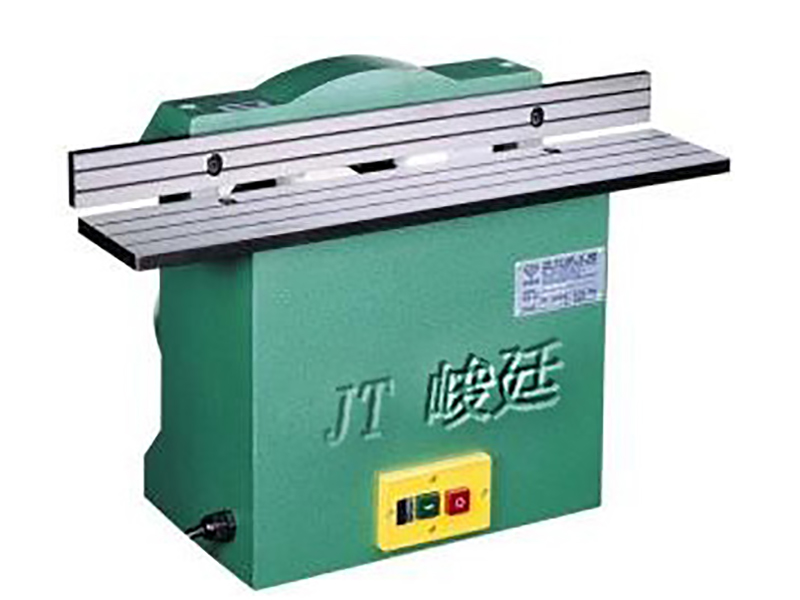

JT-500BRFace Mill Chamfering Machine
Enlarge
| MODEL | JT-500C(JT-500B,JT-500BR,JT-500B+BR) |
|---|---|
| Accessory(500B) Accessory(500BR) |
Wheel Ø100mm X Ø17mm X 35mm Face Mill Cutter Ø50mm X Ø17mm X 35mm |

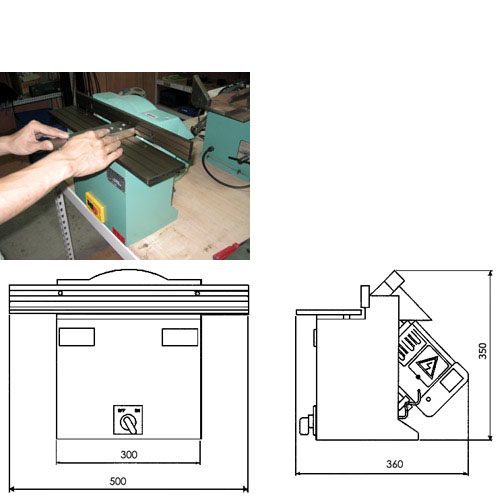

| Machine Size | L500mm x W420mm x H 350mm |
| Voltage | 3Ø, 220V-440V or 1Ø, 100V~240V , 50HZ/60HZ |
| Speed | 3500 r.p.m. |
| Height of bevel | 0~3 mm |
| Bevel angle | 45° |
| N.W./G.W. | 28 KGS / 31 KGS |
| Packing | 55cm X 44cm X 38cm |
| Measurement | 3.4 Square feet |
| Motor | 1 HP |
| Track Size | 500mm X 100mm X 12mm , 500mm X 40mm X 12mm |
| Wheel Specifications(Bowel wheel(500B)) | WA60 , K5 , V6A |
| Blade Specifications(Cuffer size (500BR)) | Sekn 1203 X 5 PCS |
- Adopt with bowl type wheel mill cutting. Special for chamfering the workpeice of heat treatment or particular process.
- It may be caused rough sureface, if processing for general iron materials.
- Workpeice with angle 45° degree after chamfered.

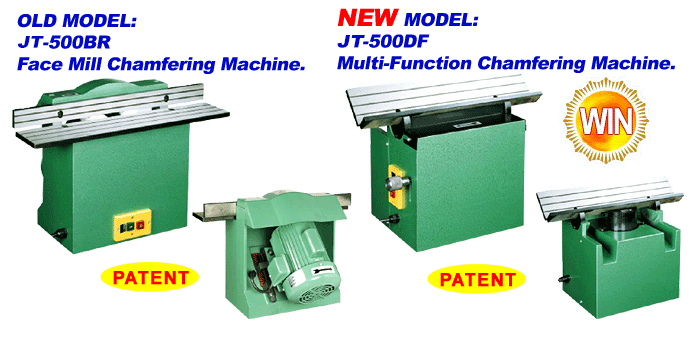

| ITEM / MODEL | 500BR (Original) | 500DF (New model) |
|---|---|---|
| Cutting Tools | Face mill only = Single function | Face mill + Wheel = Dual functions  |
| Differents for table | Fixed type | V type + L type (exchangeable), Saving the cutter costs. |
| Special design | No | Dust prevent / Dust removed design / Safety guard of tools |
| Assistant tools for cutting volume adjustment. |
Opening wrench + Hexagon wrench | Easy adjusting without any tools. |
| Costs for purchase | Simple model / Lower costs |
Advance model / Higher costs |
| Consuming cost of tools ( For long-term) |
High Costs | Saving half costs |

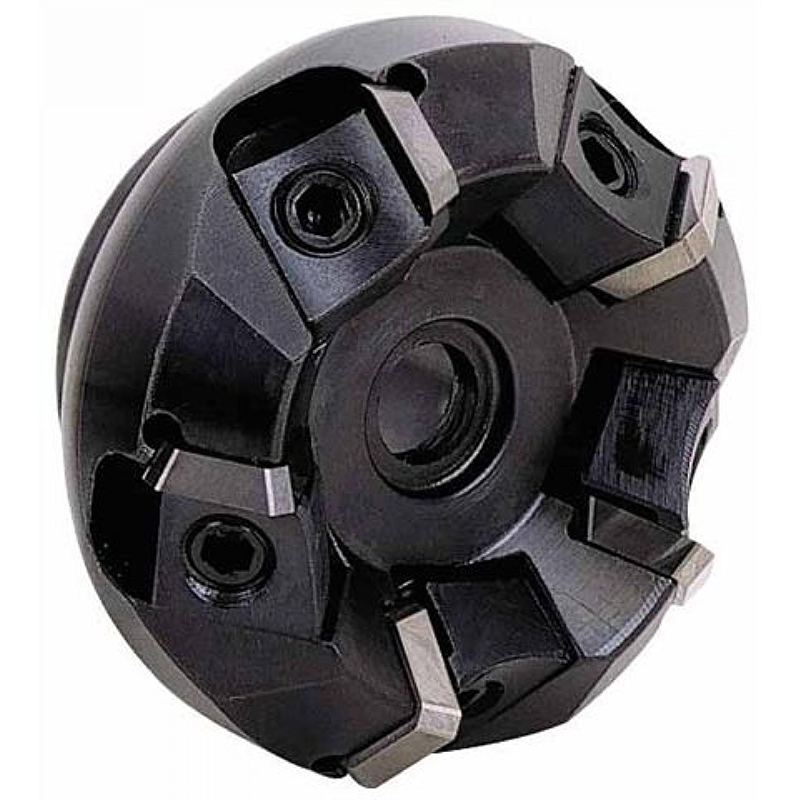

FACE MILL CUTTER+5PCS BLADE
