JT-40A

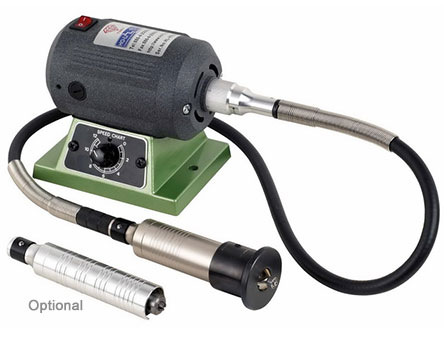

Hand Carry Engraving Chamfering Machine
| MODEL |
JT-40A |
| Capacity (Steel lron)(Within 1C per time) |
0 ~ 2C(Within a single 1C) |
| Capacity (Aluminum) |
0 ~ 2C |
| Table size |
Ø47 x Ø17 |
| Motor |
AC100V ~ 240V 50/60Hz 1PH |
| Speed of Spindle |
500 ~ 30000 r.p.m. |
| Non Load Motor |
1/3HP 250W 0.8A |
| Flexional Shaft |
36" (91.44 mm) |
| Grinding handle + Chuck(JTO) |
Optional Attachments |
| Key Type Drill Chuck-JT0 |
0 ~ 4 m/m |
| Cutter Size |
CPMT060204 |
| N.W./G.W. |
2.7/3.3 kgs |
| Packing |
34 x 27 x 14 cm |
Features
- Light and portable type. Variable speed for different materials chamfering.
- With carbon brush, lower horsepower and high speed motor.
It's high speed chamfering, special for soft materials chamfering.
- Replaceable engraving handle for both engraving and grinding.
- The horsepower is small, it's better to chamfered
with stably and slowly speed.
- To do the iron steel cutting, the thiknees can not over 1mm for one time
processing.
Accessory
- CHAMFERING HANDLE+2PCS BLADE
Optional
- JT-40B ENGRAVING HANDLE
|
