JT-18C

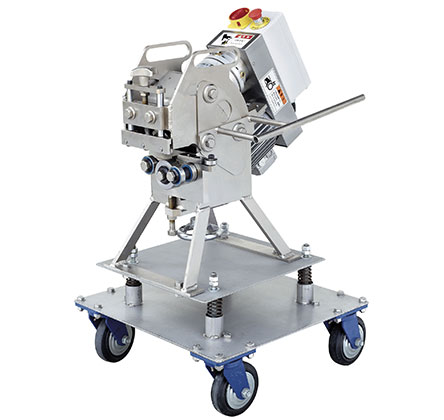

Self-propelled Chamfering Machine
| MODEL |
JT-12C |
| Voltage |
220V~440V,50Hz/60Hz,3PH |
| Motor |
3HP,2800rpm/50Hz,3420rpm/60Hz |
| Cutting speed |
2300/min(Max.) |
| Height of angle |
18mm/45° (steel) / 9mm/45° (stainless) |
| Bevel angle |
15°~50° |
| Work piece thickness |
6~40mm |
Features
- Applicant: Available for steel, stainless steel, aluminum, copper, plastic and others materials.
- Quick speed chamfering, 2500~3000mm per minute.
- No need the coolant oil or cutting oil while chamfering.
- Available for different size of panel.
The large size: Chamfering its-self for work piece.
The small size: Fixed way, move the work piece for chamfering.
- Easy operation, to adjustment each function with only one fixed wrench.
- Reliable mode, good construction.
|
