JT-12W

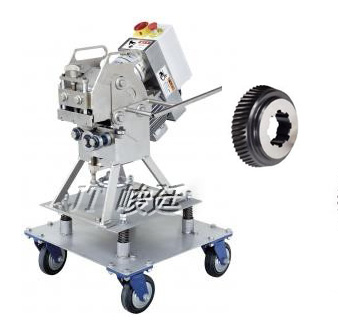

Self-propelled chamfering machine
| MODEL |
JT-12W |
| Voltage |
220V ~ 440V,50Hz/60Hz 3PH |
| Motor |
2HP,2800rpm/50Hz, 3420rpm/60Hz |
| Cutting speed |
4000~4500 /min (Max) |
| Height of angle |
13mm/45° (carbon steel) 8mm/45° (stainless steel) |
| Bevel angle |
15°~50° |
| Work piece thickness |
6~40mm |
Features
- Adopt the imported motors and decelerator of Italy.
- Applicant: Available for steel, stainless steel, aluminum, copper, plastic and others materials.
- Quick speed chamfering, 4000~4500mm per minute.
- No need the coolant oil or cutting oil while chamfering.
- Available for different size of panel.
The large size: Chamfering its-self for work piece.
The small size: Fixed way, move the work piece for chamfering.
- Easy operation, to adjustment each function with only one fixed wrench.
- Reliable mode, good construction.
Accessory
- STEEL CUTTER
Optional
- SUS CUTTER
|
